Looking for a compact, professional-grade lamination machine for small to medium BOPP thermal lamination jobs? Our Compact Hydraulic BOPP Film Laminating Machine delivers automatic feeding, hydraulic pressure control, and consistent quality in a space-saving footprint — ideal for print shops, packaging converters, and finishing houses.
Key Features
- ✓ Automatic vacuum feeding for hands-free operation
- ✓ Hydraulic pressure system for consistent bonding
- ✓ Chrome-plated oil-heated cylinder for even temperature distribution
- ✓ Touch-screen control panel with programmable presets
- ✓ Pneumatic auto-separation prevents paper jams
- ✓ Built-in film winder compatible with BOPP, PET, and metallized films
- ✓ CE certified, one-man operation, low maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SF-540 Compact Hydraulic |
| Max Paper Width | 540 mm |
| Paper Format (Max) | 540 × 760 mm |
| Paper Format (Min) | 297 × 420 mm |
| Paper Weight Range | 130 – 450 g/m² |
| Feeder Capacity | 50 mm (≈ 2,500 sheets at 200 gsm) |
| Laminating Speed | 1.5 – 20 m/min |
| Film Thickness | 17 – 38 μm |
| Max Temperature | 140 °C |
| Heating Mode | Oil heating (external sensor) |
| Pressure System | Adjustable electric hydraulic |

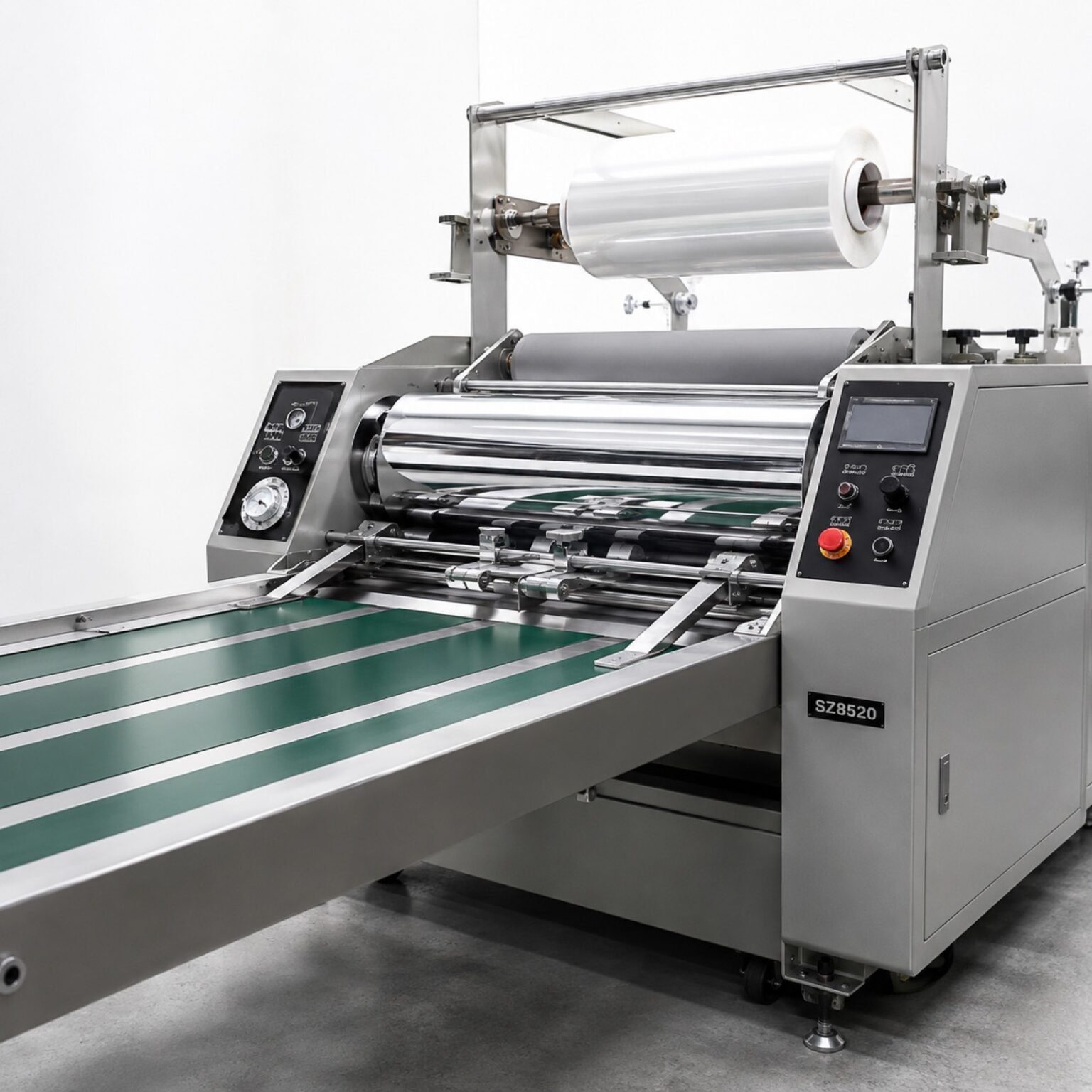

| Upper Roller | Mirror chrome plating, Ø 160 mm |
| Lower Roller | Silicone rubber, Ø 100 mm |
| Control System | Touch screen + PLC |
| Motor | AC motor |
| Input Power | 4,000 W |
| Power Supply | 220 – 240 V, 50 – 60 Hz |
| Core Size | 3 inch (76 mm) |
| Paper Overlap Accuracy | ± 1.5 mm |
| Net Weight | 240 kg |
| Package Dimensions | 720 × 910 × 1,360 mm |
Compatible Films
This machine supports our full range of thermal lamination films, including BOPP glossy, BOPP matte, PET, and metallized films. For best results, we recommend pairing with our 17–30 μm SHUNZHAN BOPP thermal lamination film.
Ideal Applications
- Print shop finishing for business cards, book covers, presentation folders
- Packaging converter lamination for boxes, labels, and cartons
- Small-batch photo book and premium packaging production
- On-demand digital print lamination (toner-fused output)
Request a Quote
Contact our sales team for pricing, technical specifications, and OEM/ODM options. We provide full installation support, on-site training, and a 1-year warranty with global service.
Frequently Asked Questions
Who is the SF-540 compact hydraulic laminator suitable for?
It suits small and medium print shops that need hydraulic pressure quality in a compact footprint, with fast setup and easy operation.
Do you provide free samples?
Yes. We provide free samples of our BOPP films for testing; you only cover the courier cost. Samples are usually shipped within 1-2 working days.
What is your minimum order quantity (MOQ)?
Our MOQ is typically 1,000-3,000 m2 per specification (about 500 kg). Trial orders can be discussed for new customers.
Which thicknesses and widths are available?
Standard thicknesses are 17-38 micron (commonly 18, 20, 25 and 30 micron), with custom widths, cores and coating weights available on request.
