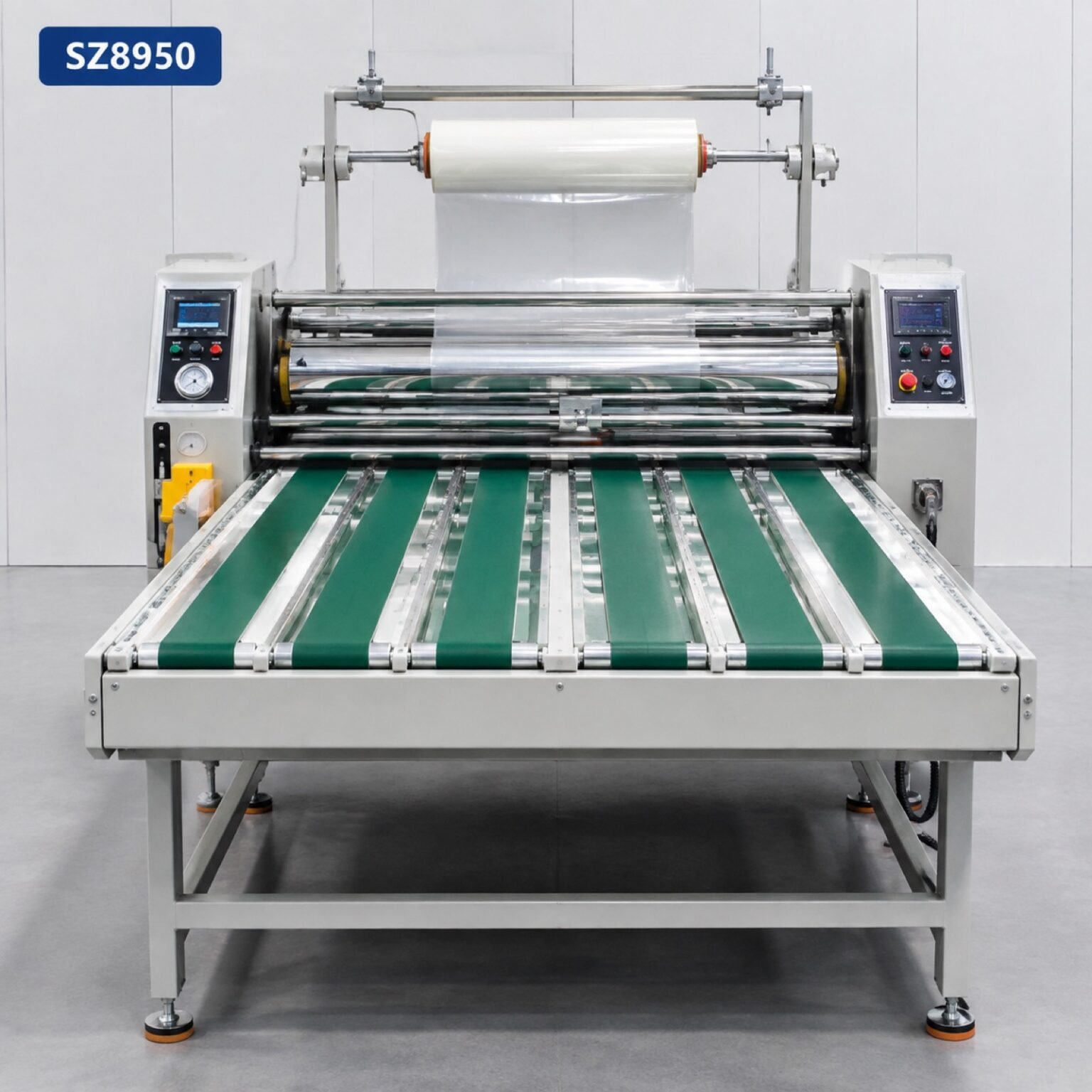

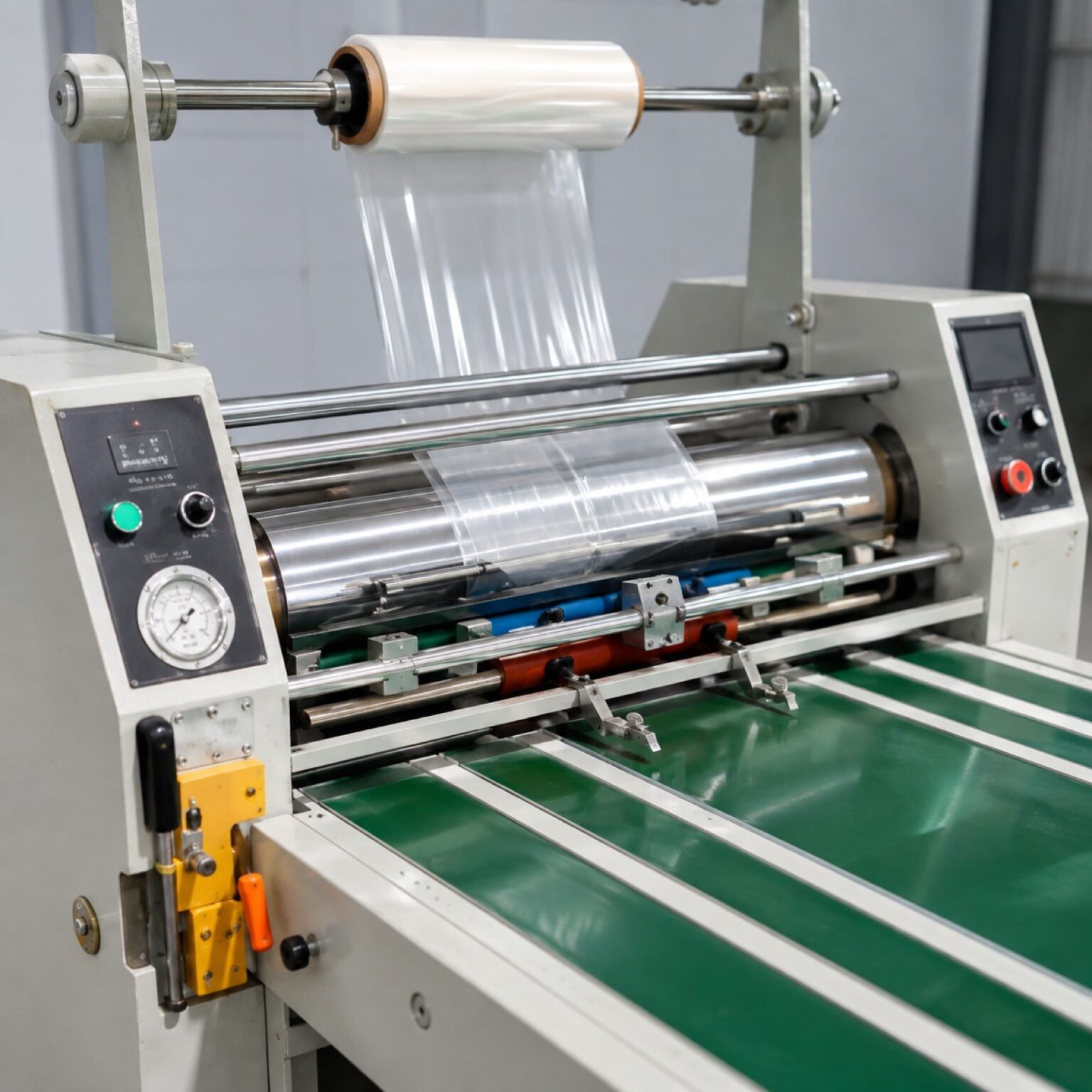

SZ8550 / SZ8750 / SZ8950 Hydraulic Laminating Machine
A heavy-duty hydraulic laminating machine family offered in three sizes (SZ8550 / SZ8750 / SZ8950), delivering fast, uniform pressure for demanding film lamination.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | SZ8550 / SZ8750 / SZ8950 |
| Machine Type | Hydraulic laminator (3 sizes) |
| Max Paper Width | Per model (850 / 875 / 895 mm class) |
| Paper Weight | 130 – 450 g/m² |
| Laminating Speed | 2 – 20 m/min |
| Film Thickness | 17 – 38 μm |
| Max Temperature | 140 °C |
| Heating | Oil heating |
| Pressure | Hydraulic |
| Power | 380 V / 3-phase |
Frequently Asked Questions
How do I choose between SZ8550, SZ8750 and SZ8950?
Choose based on your maximum sheet width, daily output and available floor space. We can recommend the size that matches your production volume and budget.
Do you provide free samples?
Yes. We provide free samples of our BOPP films for testing; you only cover the courier cost. Samples are usually shipped within 1-2 working days.
What is your minimum order quantity (MOQ)?
Our MOQ is typically 1,000-3,000 m2 per specification (about 500 kg). Trial orders can be discussed for new customers.
Which thicknesses and widths are available?
Standard thicknesses are 17-38 micron (commonly 18, 20, 25 and 30 micron), with custom widths, cores and coating weights available on request.
