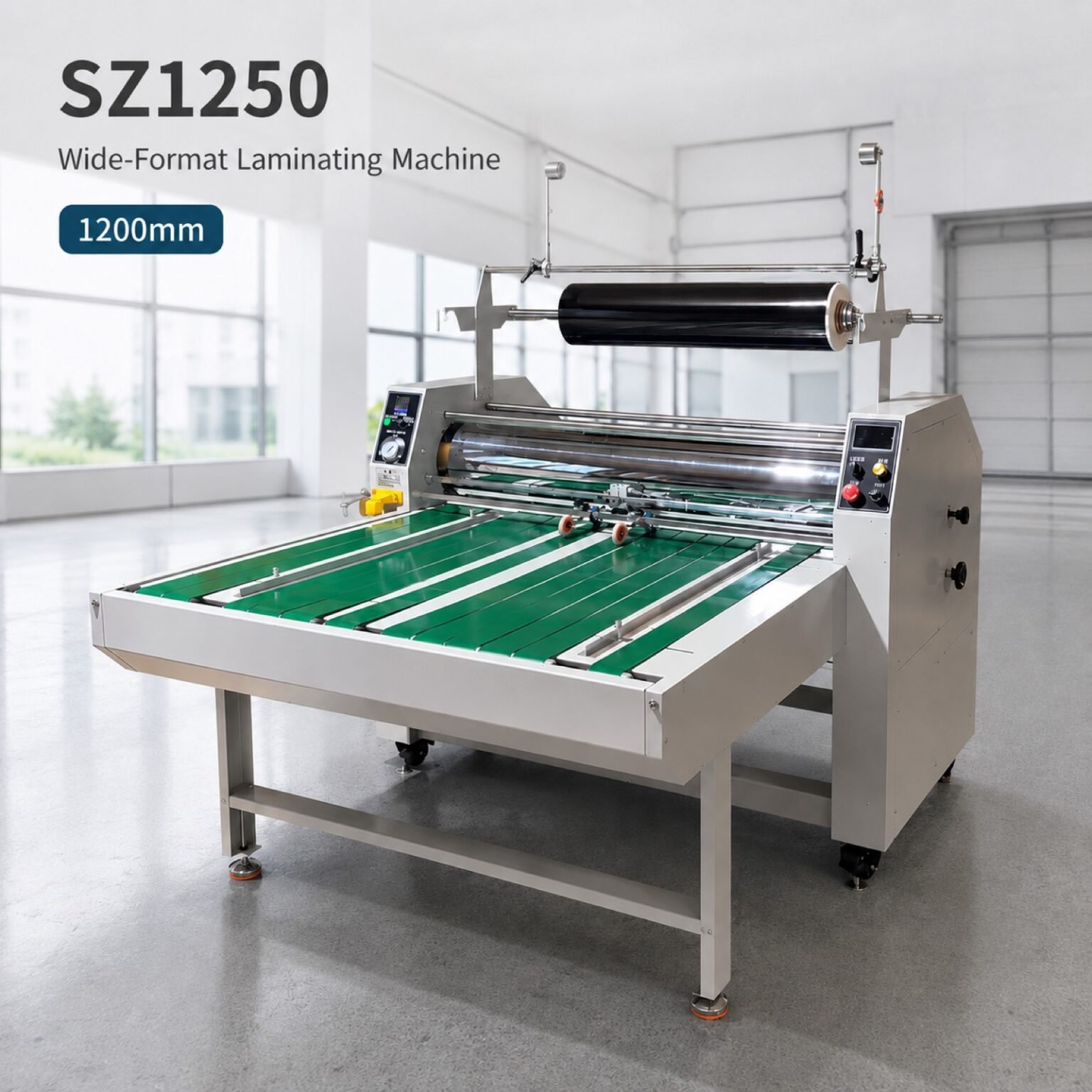

SZ1250 Wide-Format Laminating Machine | 1200 mm
The SZ1250 is a wide-format hydraulic laminating machine built for large sheets up to 1200 mm — ideal for boards, posters and large-format packaging lamination.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | SZ1250 |
| Machine Type | Wide-format hydraulic laminator |
| Max Paper Width | 1200 mm |
| Max Sheet Format | 1200 × 1600 mm |
| Paper Weight | 130 – 450 g/m² |
| Laminating Speed | 2 – 18 m/min |
| Film Thickness | 17 – 38 μm |
| Max Temperature | 140 °C |
| Heating | Oil heating |
| Pressure | Hydraulic |
| Power | 380 V / 3-phase |
Frequently Asked Questions
What sheet sizes can the SZ1250 handle?
The SZ1250 handles wide-format sheets up to 1200 mm, making it suitable for large posters, boards and oversized packaging.
Do you provide free samples?
Yes. We provide free samples of our BOPP films for testing; you only cover the courier cost. Samples are usually shipped within 1-2 working days.
What is your minimum order quantity (MOQ)?
Our MOQ is typically 1,000-3,000 m2 per specification (about 500 kg). Trial orders can be discussed for new customers.
Which thicknesses and widths are available?
Standard thicknesses are 17-38 micron (commonly 18, 20, 25 and 30 micron), with custom widths, cores and coating weights available on request.
